Brand Name : | OME |
Model Number : | custom |
Price : | USD+28+Pieces |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 10000+pieces+per month |
Delivery Time : | 7 days |
End Milling Cutter

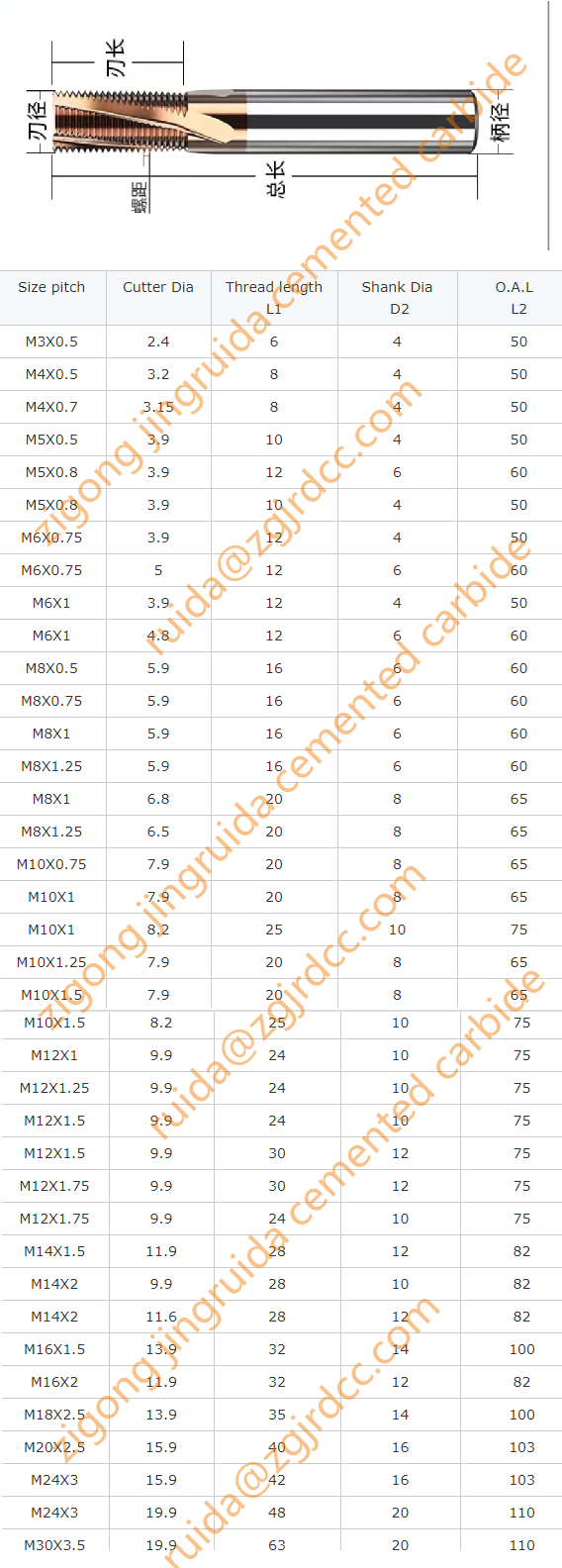

Mill any pitch – inch or metric –Thread Mill Cutters. Available in Single Form, Multi-Form, Tri-Form, and Thread Relief. Many of these tools mill right hand and left hand threads and can cut internal and external 60° UN threads in many materials, including hardened steels.
Flutes: | 3/4/4/5/6Flute |
Smooth Finish: | Highly Polished |
thread | M3,M4,M5,M6,M8,M10,M12,etc. |
CoatingCoating: | AlTiN, NACO BLUE, NACO BLACK, TiN etc. |
HRC45, 55, 65: | Flat end mill, ball nose end mill, corner radius end mill and aluminium processing end mill |
Size: | Dia: 1-20 mm, Overal Length:50-150mm |
Feature: | Excellent chip evacuation |
ITEM | FLUTE DIAMETER(d) | FLUTE LENGTH(l) | SHANK DIAMETER(D) | OVERALL LENGTH(L) |
1*3*4*50 | 1mm | 3mm | 4mm | 50mm |
2*5*4*50 | 2mm | 5mm | 4mm | 50mm |
3*8*4*50 | 3mm | 8mm | 4mm | 50mm |
4*10*4*50 | 4mm | 10mm | 4mm | 50mm |
5*13*6*50 | 5mm | 13mm | 6mm | 50mm |
6*15*6*50 | 6mm | 15mm | 6mm | 50mm |
8*20*8*60 | 8mm | 20mm | 8mm | 60mm |
10*25*10*75 | 10mm | 25mm | 10mm | 75mm |
12*30*12*75 | 12mm | 30mm | 12mm | 75mm |
14*40*14*100 | 14mm | 40mm | 14mm | 100mm |
16*40*16*100 | 16mm | 40mm | 16mm | 100mm |
18*45*18*100 | 18mm | 45mm | 18mm | 100mm |
20*45*20*100 | 20mm | 45mm | 20mm | 100mm |
FAQ
1.Q: Are you a manufacturer?
A: We are the manufacturer and the factory is in Zigong City,
China.
2.Q: Can you customize products for me?
A: Yes, we support OEM&ODM.
3.If you need customized products, please tell me the following
information.
-. carbide grade
-. carbide type and application
-. detailed dimensions(it is better to have a technical carbide
drawing)
-. product's surface treatment
-. other requirements
![]() |
