Carbide Insert Valve Seat OEM Service For Cylinder Head Seat / Serdi

Ask Lasest Price
Brand Name :	OME
Price :	USD+3.9+Pieces
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	30000+pieces+per month
Delivery Time :	25 days

Add to Cart

Product Details
Company Profile

Carbide Insert Valve Seat OEM Service For Cylinder Head Seat / Serdi

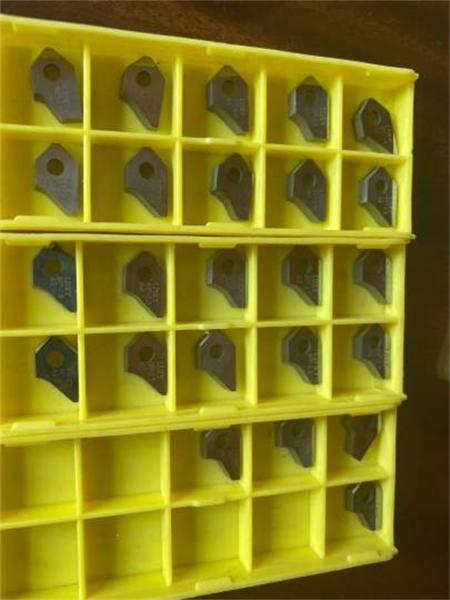

Tungsten Carbide Valve Blade Serdi Newen Insert, A1/E1/E2 /B1 Cutters For Cylinder Head Seat /Serdi

A1 B1 B4 E1 E2 D1 D2 Cutter for Serdi & NEWEN

A1 E1 E2 Etc profile cutters are designed on a modern CAD system, and then produced according to exact seat specification on a CNC profile grinder.

Specifications
Tungsten Carbide Cylinder Head Seat Cutter/Serdi Insert

1) 100% new materials
2) High quality and best price
3) Wear resistant
4) Fully stocked
5) OEM service

Type NEWEN	A = Ancho de asiento		B = Ancho superior		α Angulo de asiento	α Angulo superior	α Angulo de angostura
	mm	pulgada	mm	pulgada
WA1-NWN4183	0.8	0.031	1.0	0.039	45	32	60
WA1-NWN4445	1.0	0.039	1.0	0.039	45	15	60
WA1-NWN1101	1.0	0.039	1.0	0.039	45	25	60
WA1-NWN4028	1.0	0.039	1.2	0.047	45	30	60
WA1-NWN4984	1.0	0.039	1.2	0.047	45	38	52
WA1-NWN4983	1.0	0.039	1.3	0.051	45	30	75
WA1-NWN1102	1.0	0.039	1.4	0.055	45	25	60
WA1-NWN4588	1.0	0.039	1.6	0.063	45	25	52
WA1-NWN4029	1.0	0.039	1.6	0.063	45	35	52
WA1-NWN4030	1.0	0.039	1.6	0.063	45	35	55
WA1-NWN4031	1.0	0.039	1.6	0.063	45	35	60
WA1-NWN4980	1.0	0.039	1.6	0.063	45	38	65
WA1-NWN4017	1.0	0.039	1.8	0.071	45	15	60
WA1-NWN4981	1.0	0.039	1.8	0.071	45	20	75
WA1-NWN1103	1.0	0.039	1.8	0.071	45	25	60
WA1-NWN4090	1.0	0.039	1.8	0.071	45	30	60
WA1-NWN4303	1.0	0.039	2.0	0.079	45	30	60
WA1-NWN4087	1.0	0.039	2.0	0.079	45	37	52
WA1-NWN4903	1.0	0.039	2.54	0.100	45	37	58
WA1-NWN4904	1.0	0.039	2.54	0.100	45	37	64
WA1-NWN1105	1.0	0.039	3.0	0.118	45	25	60
WA1-NWN4451	1.0	0.039	3.0	0.118	45	30	60
WA1-NWN4182	1.2	0.047	1.2	0.047	45	30	60
WA1-NWN1122	1.2	0.047	1.4	0.055	45	25	60
WA1-NWN4016	1.2	0.047	1.8	0.071	45	15	60
WA1-NWN4032	1.3	0.051	1.0	0.039	45	30	60
WA1-NWN4221	1.3	0.051	1.2	0.047	45	30	60
WA1-NWN4480	1.3	0.051	1.6	0.063	45	30	60
WA1-NWN4091	1.3	0.051	1.8	0.071	45	30	60
WA1-NWN4034	1.3	0.051	2.0	0.079	45	30	52
WA1-NWN4035	1.3	0.051	2.0	0.079	45	30	60

 Degree	A mm inch	R mm inch	 Degree		A1		E1		E2 -0° E2 -8°				Original SERDI part
30	2,20 0,0866	2,50 0,0984	70		006218		022612		922615 022615				32016-A1
30	3,50 0,1378	0,60 0,0236	60		007016		022614		922617 022617				33009-A1
45	1,00 0,0394	6,00 0,2362	65		001272		022616		922619 022619				41006-A1
45	1,20 0,0472	6,00 0,2362	65		001297		022618		922621 022621				41034-A1
45	1,30 0,0512	6,30 0,2480	65		001324		022620		922623 022623				41063-A1
45	1,50 0,0591	6,00 0,2362	60		001354		022624		922625 022625				41090-A1
45	1,70 0,0669	2,00 0,0787	65		005459		022626		922627 022627				41130-A1
45	2,70 0,1063	2,50 0,0984	60		001570		022628		922629 022629				42067-A1
45	2,80 0,1102	2,00 0,0787	65		001571		022638		922639 022639				42069-A1
45	3,00 0,1181	0,60 0,0236	60		001615		022640		922641 022641				43005-A1
45	3,50 0,1378	0,60 0,0236	60		007017		022642		922643 022643				43009-A1
 Degree	A mm inch	B mm inch	 Degree	R mm inch				A1		E1		E2 E2 -0° -8°				Original SERDI part
30	1.00 0,0394	1,93 0,0760	15	12		0,4724		001091		022644		922645		022645 31002-A1
35	1.00 0,0394	1,93 0,0760	15	12		0,4724		001189		022646		922647		022647 35102-A1
45	1,00 0,0394	1,53 0,0602	40	5		0,1969		001285		022648		922649		022649 41023-A1
45	1,00 0,0394	1,53 0,0602	40	12		0,4724		000432		022650		922651		022651 41022-A1
45	1,00 0,0394	1,93 0,0760	15	12		0,4724		001283		022652		922284		022284 41019-A1
45 45	1,20 0,0472 1,30 0,0512	4,00 0,1575 2,15 0,0846	40 30	7.5 12		0,2953 0,4724		001298 019160		022654		922653 922519		022653 41035-A1 022519 HP1953-B1
45	1,30 0,0512	2,15 0,0846	30	12		0,4724		001323		022497		922655		022655 41062-B2
45	1,50 0,0591	1,53 0,0602	40	12		0,4724		001368		022656		922657		022657 41100-A1
45	1,50 0,0591	1,56 0,0614	30	12		0,4724		006115		022658		922659		022659 41171-A1
45	1,50 0,0591	1,93 0,0760	15	12		0,4724		001363		022660		922661		022661 41098-A1
45	1,65 0,0650	1,27 0,0500	30	10.8		0,4252		019161		022662		922663 022663				HP1583-A1
 Degree	A mm inch	B mm inch	 Degree		 Degree		A1		E1		E2 -0° E2 -8°				Original SERDI part
30	1.00 0,0394	1.40 0,0551	15		60		001126		022664		921285 021285				310-A1
30	1.30 0,0512	1.00 0,0394	15		45		019162		022666		922665 022665				SC300
30	1.30 0,0512	2.00 0,0787	15		45		011648		022668		922667 022667				SC301
30	1.30 0,0512	2.00 0,0787	15		60		019163		022670		922669 022669				SC302
30	1.50 0,0591	1.00 0,0394	20		60		017140		022672		922671 022671				15E30D60-A1
30	1.50 0,0591	1.40 0,0551	15		45		019164		022676		922673 022673				SC303
30	1.50 0,0591	1.40 0,0551	15		60		000551		022674		921286 021286				315-A1
30	1.50 0,0591	1.80 0,0709	15		45		000756		025367		925188 025188				SC304
30	1.50 0,0591	1.80 0,0709	15		60		000757		022678		922675 022675				15J30U60-A1
30	1.50 0,0591	2.00 0,0787	2		75		019165		022680		922677 022677				15K30S75-A1
30	1.50 0,0591	2.00 0,0787	15		60		012367		025368		927114 027114				SC305
30	1.60 0,0630	1.20 0,0472	15		45		019166		022688		922679 022679				SC306
30	1.60 0,0630	1.60 0,0630	15		65		001108		022690		921289 021289				31021-A1
30	1.60 0,0630	1.80 0,0709	15		45		024903		025369		927044 027044				SC307
30	1.60 0,0630	1.80 0,0709	15		52		000797		022692		922687 022687				SC308
30	1.60 0,0630	2.00 0,0787	15		45		000800		022694		922689 022689				SC309
30	1.60 0,0630	2.00 0,0787	15		60		019167		022696		922691 022691				SC310
30	1.60 0,0630	2.20 0,0866	15		60		000279		025371		925370 025370				SC311
30	1.80 0,0709	1.20 0,0472	15		45		023396								18F30U45-A1
30	1.80 0,0709	1.30 0,0512	20		52		011265		022698		922693 022693
30	1.80 0,0709	2.00 0,0787	15		45		019168		022700		922695 022695				SC312
30	1.90 0,0748	1.00 0,0394	15		45		000824		022702		922697 022697				SC313
30	1.90 0,0748	1.40 0,0551	15		60		001132		022704		922699 022699				319-A1
30	1.90 0,0748	1.80 0,0709	15		60		000843		022706		922701 022701				19J30U60-A1
30	1.90 0,0748	2.00 0,0787	15		60		006256		022708		922703 022703				SC314
30	2.00 0,0787	1.20 0,0472	15		45		012833		022710		922705 022705				SC315
30	2.00 0,0787	1.40 0,0551	0		60		000899		022712		922707 022707				20G30R60-A1
30	2.00 0,0787	1.40 0,0551	15		60		001165		022714		921287 021287				320-A1
30	2.00 0,0787	2.00 0,0787	15		45		019169		022716		922353 022353				SC316
30	2.20 0,0866	1.40 0,0551	15		60		018092		022718		922709 022709				322-A1
30	2.20 0,0866	2.00 0,0787	15		60		019170		022720		922711 022711				SC317
30	2.30 0,0906	1.80 0,0709	15		60		000988		022722		922713 022713				23J30U60-A1
30	2.40 0,0945	2.60 0,1024	18		56		019171		022724		922715 022715				24N30C56-A1
30	2.50 0,0984	1.40 0,0551	15		60		001168		022730		921288 021288				325-A1
30	3.00 0,1181	1.40 0,0551	15		60		001179		022732		921737 021737				330-A1
30	3.28 0,1291	2.79 0,1098	15		45		023048
30	3.80 0,1496	3.00 0,1181	20		45		024925		025372		924962 024962				SC318
30	4.00 0,1575	1.40 0,0551	15		60		001186		022734		922721 022721				340-B2
