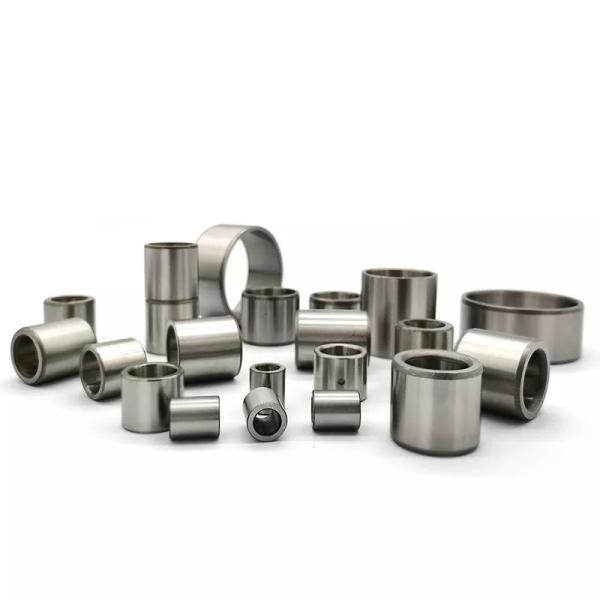

tungsten carbide grinding bushings
Tungsten Carbide bushings have the characters of high wear
resistance, high corrosion resistance and good compressive
properties.It's widely used in petrochemical industries and other
industries which call for high properties of the mechanical parts.
Product Description:
customized cemented tungsten carbide sleeve bushing
| Chinese Grade | ISO | Chemical Composition | Physical Mechanical Properties |
| WC | Co | Density | Bend Strength | Hardness |
| % | % | G/Cm3 | N/mm2 | HRA |
| YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
| YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
| YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
| YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
| YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
| YG10X | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 |
| YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
| YG20 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 |
| YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
| YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
Grade as following :
YG6,YG6X,YG8,YG8.2,YG8L,YG15,YG20,YG20C,YG20D etc are the
traditional material,suitable for the normal tungsten carbide
roller.
Since years 2016, ZGJRDCC has become synonymous with quality,
reliability and best value for money. As the cemented carbide parts
supplier, our products are widely used in many different projects
locally and in many parts of the world.Energy, mining, aviation,
CNC , etc.
We are proud that our continual development and technical support
capabilities has made our wear parts and precision parts by many
oilfield contractors.
Normal cylindrical axle sleeve,cylindrical axle sleeve with slot,
cylindrical axle sleeve with stage,axle sleeve with slot and convex
stage,non-standard axle sleeve etc. There is a big choice of sizes
and types of products.
1. Tungsten carbide bushing has the characteristics of wear
resistance and impact resistance.
2.It is the supporting parts used in the mechanical parts, in order
to achieve sealing, wear protection and other functions.
In the field of valve applications, the tungsten carbide bushing is
in the bonnet and is the corrosion-resistant materials for sealing.
3.In the field of bearing application, the carbide bushings are
used to reduce wear between the bearing and the shaft seat, and to
avoid the increase of clearance between shaft and hole.
FAQ
1.Q: Are you a manufacturer?
A: We are the manufacturer and the factory is in Zigong City,
China.
2.Q: Can you customize products for me?
A: Yes, we support OEM&ODM.
3.If you need customized products, please tell me the following
information.
-. carbide grade
-. carbide type and application
-. detailed dimensions(it is better to have a technical carbide
drawing)
-. product's surface treatment
-. other requirements
